Key Specifications:

- Measuring Range: The maximum range for this series can reach up to 80 meters, making it suitable for a wide range of applications.

- Process Connection: It can be connected using threaded or flanged connections.

- Antenna Material: The antenna is made of stainless steel or PTFE, offering options for different media and applications.

- Process Temperature: The instrument can work in temperatures ranging from -40°C to 250°C.

- Process Pressure: It can handle pressures within the range of -0.1 to 4.0 MPa.

- Accuracy: Offers high accuracy with a margin of ±3mm.

- Protection Grade: Rated IP67, indicating a high degree of protection against dust and water.

- Frequency Range: Operates at 26GHz, providing improved accuracy compared to 6GHz radar instruments.

- Supply: Can be powered by a 2-wire (DC24V) or 4-wire (DC24V/AC220V) power source.

- Signal Output: Provides output options such as 4-20mA, HART (2-wire/4-wire), RS485, and Modbus.

- Outer Covering: Available in aluminum, plastic, or stainless steel.

- Explosion-Proof Grade: Comes with various explosion-proof ratings, including Exia IIC T6 Ga and Exd IIC T6 Gb.

Product Features:

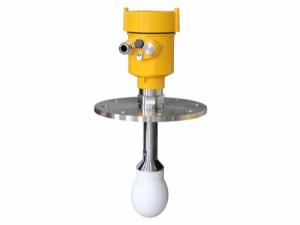

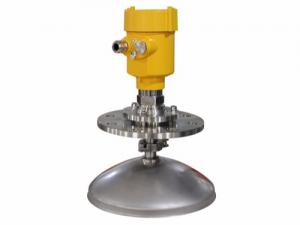

- The ATVUK SIR 26 Radar Level Transmitter series offers more than ten models to cover a wide range of media applications, outputs, and compatibility with corrosive, acidic, and alkaline liquids.

- It is available in both flange and thread models, providing flexibility in installation.

Range:

- The maximum measuring range for various model numbers in the 26GHz Radar Level Transmitter series includes options like:

  - SIR-26-01: 10 meters (Liquid type)

  - SIR-26-02: 30 meters (Liquid type)

  - SIR-26-02T: 20 meters (Liquid type)

  - SIR-26-03: 70 meters (Solid type)

  - SIR-26-04: 80 meters (Solid type)

  - SIR-26-05: 30 meters (Solid type)

  - SIR-26-06: 20 meters (Liquid type)

Benefits:

- The 26GHz frequency provides better accuracy, with a margin of ±3mm, compared to the 6GHz radar.

- It is suitable for a wide range of applications, including those involving complex measurement environments.

 In summary, Star's 26GHz Radar Level Gauge and Transmitter series is a high-performance instrument suitable for precise level measurements in a variety of challenging conditions. Its advanced technology and versatile model range make it a valuable solution for industries that require accurate and long-range level measurement. For more detailed information on specific models, it's recommended to contact the company directly.
