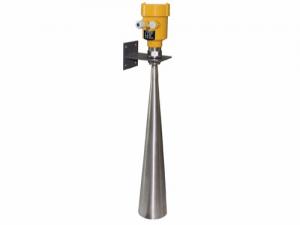

26 GHZ Radar Level Transmitter For Water
BROTEK MAKE 26GHz Radar Level Transmitter

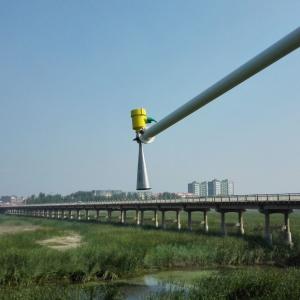

and Gauge is specifically designed for water level measurement and control in
various natural water bodies such as rivers, dams, lakes, ponds, and shoals. It
utilizes a 26GHz frequency radar, offering higher accuracy and repeatability
compared to 6GHz radar systems.
Product Feature
Common Specifications:
- Application: Suitable for use in
rivers, lakes, and shoals for water level measurement and control.
- Measuring Range: Maximum range
options of up to 30 or 70 meters, making it suitable for various water bodies.
- Process Connection: Available in
thread G1½ A", frame, or flange configurations.
- Temperature: Operates in
temperatures ranging from -40°C to 100°C.
- Process Pressure: Designed for
normal pressure environments.
- Precision: Offers high precision
with an accuracy of ±3mm.
- Frequency Range: Operates at
26GHz for improved measurement accuracy.
- Protection Grade: Comes in IP67
or IP65 ratings for protection against dust and water.
- Power Supply: Can be powered by
(6-24V) DC or four-wire 24V DC/two-wire configurations.
- Signal Output: Provides output
options, including RS485/Modbus (6-24V DC) and 4-20mA/HART two-wire (24V DC).
- Scene Display: Optional feature.
- Outer Covering: Available in
aluminum, plastic, or single-chamber configurations.
- The 26GHz radar level
transmitter for water is designed with a recommended industry emission
frequency of 26GHz, which results in a smaller beam angle, concentrated energy,
and enhanced anti-interference ability, thereby improving measurement precision
and reliability.
- The system features a small
antenna size, easy installation, and a dustproof cover for antenna protection.
- It is lightweight, making it
easy to install, with a weight of about 1KG.
- The measurement range can reach
up to 70 meters, making it suitable for large reservoir water level
measurement.
- It offers various output circuit
interfaces and data acquisition system compatibility.
- The radar level meter operates
in a pulse working mode with low transmit power, ensuring no harm to humans or
the environment.
Range:
- There are two models available
for water level measurement:
- SIR-26-LH-70: Maximum range up to 70 meters
- SIR-26-LH-30: Maximum range up to 30 meters

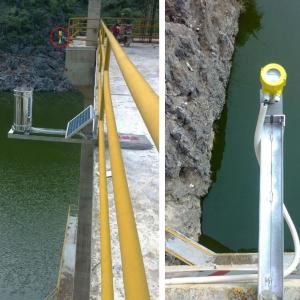

Product Appication
In summary, BROTEK MAKE 26GHz Radar
Level Transmitter and Gauge are specifically designed to provide accurate water
level measurement and control in natural water bodies. The use of 26GHz radar
technology ensures higher accuracy, and its various configurations make it
adaptable to different environments and applications. For more detailed
information, it is recommended to check the product catalog or contact the
company directly.
