6 GHZ Radar Level Gauge Transmitter
BROTEK MAKE 6GHz Radar Level Gauge and
Transmitter is a versatile and reliable instrument designed for non-contact
measurement of liquid, paste, granular, and block materials in various
industrial applications. It is suitable for use in conditions with temperature
and pressure variations and can even operate in the presence of inert gases and
volatile materials.
Product Feature
Key Specifications:
- Explosion-Proof Rating:
Available with various explosion-proof ratings, including Exia IIC T6 Ga, Exd
IIC T6 Gb, and IP65/IP67.
- Measuring Range: Maximum range
of up to 35 meters.

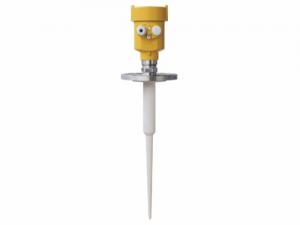

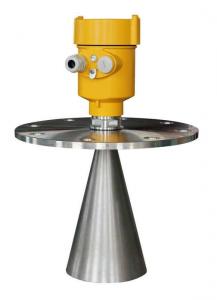

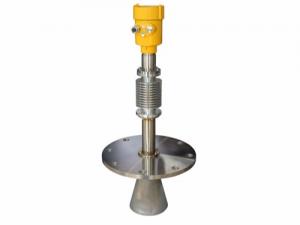

- Antenna: Available in rod or
horn configurations with choices of materials, including PTFE, stainless steel,
and special metals.
- Frequency: Operates at 6GHz,
suitable for industrial frequency bands.
- Temperature Range: Works
reliably in temperatures ranging from -40°C to 400°C.
- Measurement Precision: Offers an
accuracy of ±10mm.
- Process Pressure: Suitable for
pressures within the range of -0.1 to 4 MPa.
- Signal Output: Provides output
options including 4-20 mA and HART.
- Scene Display: Equipped with a
four-LCD display that can be programmed.
- Power Source: Can be powered using
two-wire (DC24V) or four-wire (DC24V/AC220V) configurations.
- Repeatability: Offers a high
repeatability of ±1mm.
- Outer Covering: Available in
aluminum, plastic, and stainless steel options.
- Connection: Can be connected
using flange or threaded connections with choices of PTFE, stainless steel, or
other materials.
Suitable for Various Media:
- Suitable for measuring liquid,
solid, and powder materials.
- Suitable for use with corrosive
liquids, acids, and alkaline substances.
- Ideal for measuring viscous and
pasty liquids.
Product Features:
- The Star 6GHz Radar Level Gauge
comes with an inbuilt transmitter and offers output options like HART, 4-20mA,
and RS-485.
- It provides the option for
various antenna materials, including PTFE, PVDF, and metal, making it versatile
for measuring different types of materials.
Range:
The maximum measuring level range
for various model numbers includes options like:
- SIR-601: 20m (Liquid)
- SIR-602: 20m (Liquid)
- SIR-603: 35m
- SIR-604: 35m
- SIR-605: 20m
- SIR-606: 15m
Product Appication
Accuracy:
The accuracy of the 6GHz Radar
Level Gauge is ±10mm with a high level of repeatability.
In summary, Star's 6GHz Radar
Level Gauge and Transmitter is a reliable and versatile solution for level
measurement in various industrial applications. Its ability to work in
challenging conditions and with various types of materials, including corrosive
substances, makes it suitable for a wide range of industries. For more detailed
model-specific information, it's recommended to check the catalog or contact
the company.
