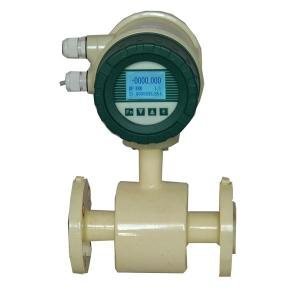

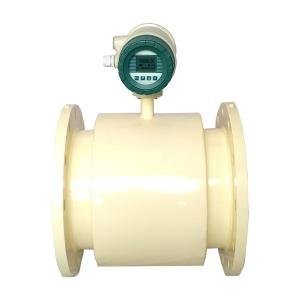

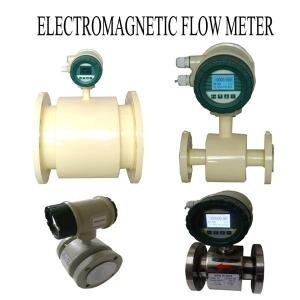

Electromagnetic Flow Meter / SIU/Heat/Energy Flow Meter
Model No: SI MFT
Product Specification:
The BROIL Electromagnetic flow meter, approved by the Weights
and Measures (W&M) Legal Metrology in the Government of India, is designed
for the precise measurement of water, compliant with MID 001 standards. This
specialized electromagnetic flow meter and sensor are suitable for various
applications, including batching, SIU, heat calculation, and general
measurement tasks. It is available with power supply options of 24V DC, 230V
AC, and battery operation.
Product Feature
Electromagnetic Flow Meter Specification:
- Parameter:
- Nominal diameter
of the pipeline, DN: 15 ÷ 1000
- Accuracy: from ±
0.5% / 1%
- Maximum pipeline
pressure, MPa/bar: 2.5/25
- Minimum
conductivity, µS/cm: 5
- Fluid temperature
range: -10 ÷ 150
- Ambient
temperature range: 5 ÷ 50
- Minimum straight
pipe runs: 5 DN upstream and 2 DN downstream
- Protection: IP65
- Power supply: 24V
DC, 230V AC, battery operated
- Outputs:
- LCD
- Pulse outputs
- Logical and
digital outputs
- 4 to 20 mA output
- Alarm output (high
or low)
- RS-485 interface
(Modbus)
- Design Material:
- Flanges and
housing: Carbon steel / Stainless steel
- Lining: PTFE
- Electrodes:
Stainless steel, Hastelloy, titanium, or customer-specific materials as per
application requirements
Product Appication
Product Features:
- Available in sizes from DN 15 to 10000 mm
- Bidirectional flow measurement (on request)
- Full-bore meter design eliminates pressure loss in the
measurement section
- No filtering required
- Short straight pipe runs required for installation
- Protection against unauthorized access
Range and Application:
Applications:
- Hot and cold water measurement
- Water abstraction
- Water treatment
- Water distribution network
- Irrigation
- Waste water treatment
- Filtration plant
- Heat distribution systems
- Heat generation plants
- Industrial water applications
Product Applications:
- Pure Water
- Waste Water
- Acid & Chemical
- Hygienic Liquid
