Guide Wave Radar Level Meter & Transmitter
BROTEK MAKE Guide Wave Radar Level
Transmitter is a versatile and precise instrument for measuring levels in a
variety of challenging conditions. It is available with different
configurations and coatings to suit your specific needs. Here are the technical
details and specifications:
Product Feature
Key Features:
- Multiple Configurations: The
Guide Wave Radar Level Transmitter is available with different options,
including single cable, double cable, single rod, coaxial tube, and PTFE or
PVDF coating on the cable and rod-type antenna.
- Power Supply: It can be powered
by either 24V DC or 230V AC.
- Output: It offers output
options, including HART and 4-20 mA.
- Explosion-Proof Rating:
Available with various explosion-proof ratings, including Exia IIC T6 Ga and
Exd IIC T6 Gb.
- Principle: The transmitter uses
high-frequency microwave pulses that propagate along the detection components
(steel cable or steel rod). When these pulses encounter the measured medium,
they cause reflections due to changes in dielectric constant, and a portion of
the pulse energy is reflected back. The time interval between the transmit
pulse and the reflected pulse is used to measure the distance to the media.
Common Technical Specifications:
- Suitable for Medium: Liquid,
solid, powder
- Measuring Range: Up to 30m
- Frequency: 500MHz-1.8GHz
- Accuracy: ±10mm
- Process Temperature: -40°C to
400°C
- Process Pressure: -0.1 to 40 MPa
- Signal Output: 4-20 mA or HART
- Display: Four LCD (programmable)
- Power Source: Two-wire (DC24V)
or four-wire (DC24V/AC220V)
- Shell: Aluminum or plastic
- Connection: Flange or thread

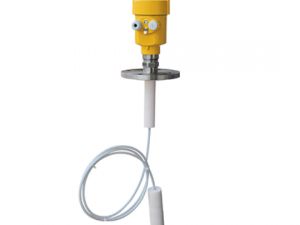

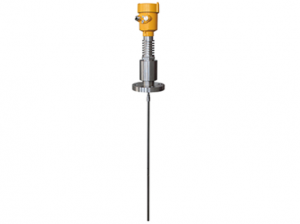

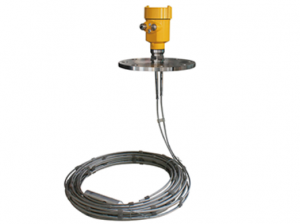

- Antenna: Single cable, double
cable, single rod, coaxial tube, PTFE, or PVDF coating cable and rod
Applications:
- The transmitter can be used to
measure levels in liquids, solids, and powders.
- It is suitable for use with
corrosive media, including acids, bases, and alkaline substances.
- It is applicable for measuring
materials such as cement silo powder and ash powder.
- Can measure non-ion water and
deoxygenated water.
Range:
The maximum measuring level range
for various models is as follows:
- SIR-101: 30m/6m (Cable/Rod)
- SIR-102: 20m/6m (Cable/Rod)
- SIR-103: 30m/6m (Cable/Rod)
- SIR-104: 6m
- SIR-105: 15m/6m (Cable/Rod)
Product Appication
Accuracy:
The accuracy of the Guide Wave
Radar Level Transmitter is ±10mm.
In summary, Star's Guide Wave
Radar Level Transmitter is a highly adaptable and accurate instrument for level
measurement in a wide range of applications, including challenging conditions
and corrosive media. Its various configurations and coatings make it suitable
for many industries and situations. For more detailed information, it's
recommended to contact the company for a detailed catalog with model numbers.
