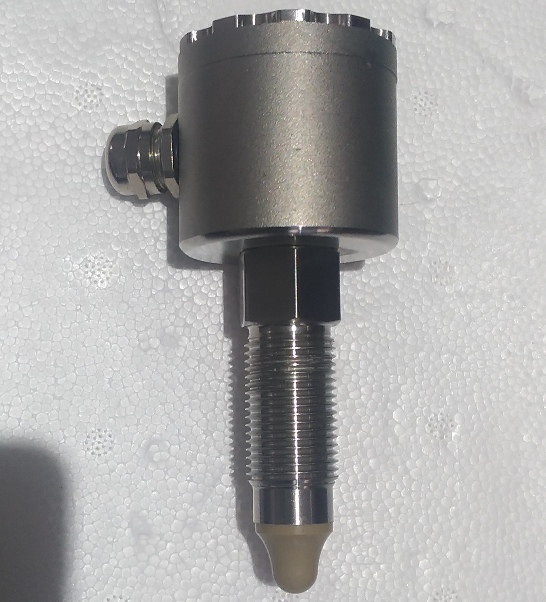

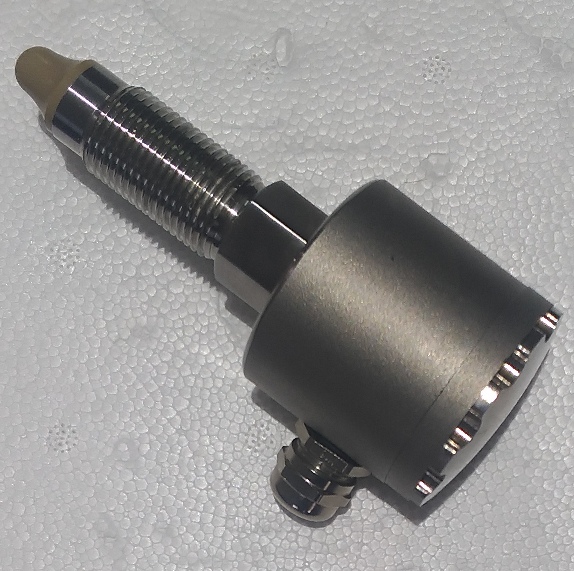

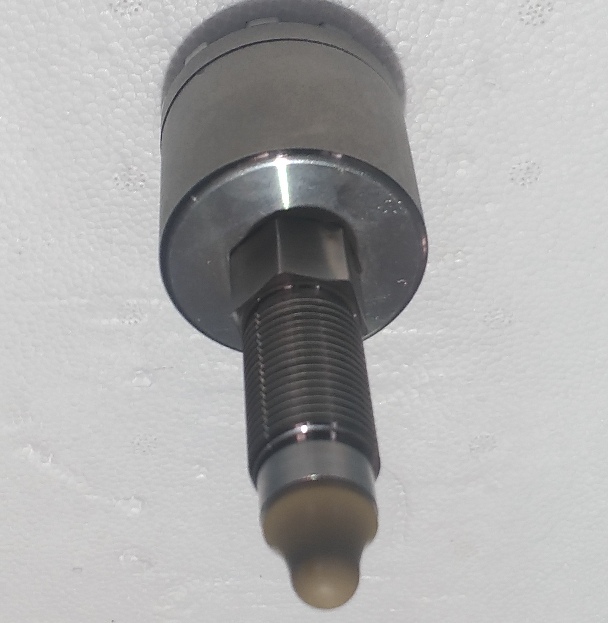

High Temperature Frequency Sweep Microwave Level Switch
The BROTEK MAKE Admittance Microwave
Intelligent Heavy-Duty Level Switch is specially designed for applications with
explosion and high-temperature requirements. It is suitable for a wide range of
industries and is highly adaptable with customer-specific process connections,
making it versatile and reliable.
Product Feature
Key Specifications:
- Material: The enclosure and
connection are made of S.S. 316L, and the measuring point is made of PEEK.
- Switch Delay: Adjustable from 0
to 3 seconds.
- Output: Provides options for NO,
NC, NPN, and PNP output.
- Power Supply: Supports a power
supply range of 12 to 33V DC, with 24V DC being the ideal voltage.
- Power Consumption: Consumes less
than 33mA.
- Protection: Rated IP66 for
protection against dust and water.
- Pressure Limit: Capable of
handling pressures up to 10 bar.
- Temperature Limit: Available in
two temperature ranges, from -40°C to 150°C and from -40°C to 200°C.
- Process Connection: Offers
various process connection options, including thread, tri-clamp, sanitary
clamp, and welding sleeve.
- Weight: Approximately 0.3 kg.
Product Features:
- The heavy-duty SI Admittance
Microwave Level Switch is designed to meet explosion and high-temperature
requirements.
- It is compatible with a wide
range of process connection types, allowing for customization to meet specific
industry needs.
- The level switch is suitable for
temperatures up to 200°C, making it versatile for high-temperature
applications.
- The microwave level switch
utilizes frequency sweep technology, allowing you to select switching points
according to the specific requirements of the medium.
- It is designed with materials
that can withstand harsh conditions and maintain accuracy.
Certifications:
- The SI Frequency Sweep Microwave
Level Switch is approved with EX, CE, SIL, and IP66/67 certifications, ensuring
safety and reliability in various environments.
Product Appication
Applications:
- This level switch is suitable
for use in a wide range of industries and applications, especially those with
explosion and high-temperature considerations.
- It can be used for level control
of solids, powders, and liquids.
- Its design is not affected by
liquid conductivity, viscosity, or the presence of foam.
In summary, the SI Admittance
Microwave Intelligent Heavy-Duty Level Switch is a versatile and reliable
solution for industries with demanding requirements. Its adaptability to various
process connections and high-temperature capabilities make it suitable for a
wide range of applications. For more detailed information, it's recommended to
contact the company directly.
