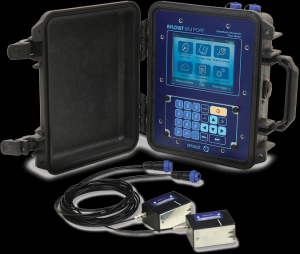

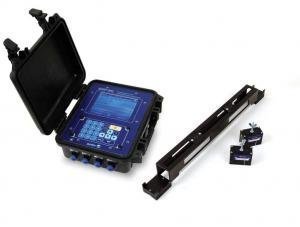

Portable Ultrasonic Digital Flow Meter
Portable Ultrasonic Digital Flow Meter
The Portable Ultrasonic Digital Flow Meter is a cutting-edge
solution for portable flow measurements. It is backed by Star Senostek
Industries, who exclusively collaborate with leading German and Russian
producers for electromagnetic flow meters, ultrasonic flow meters, and vortex
flow meters with approvals including OIML, MID, 2014/32/EC, EX, and IP 65.
Advantages:
- OIML/MID 001/2014/32/EC certified.
- Utilizes digital data processing for short measuring time
and high interference protection.
- Offers automatic adjustment for ease of use.
- Supports reversible stream measurement in pipelines.
- Includes a low-frequency transformer for use with
corrosion-prone pipelines and liquids containing hard particles.
- Provides a mode for mass and heat calculation using
volume, temperature, and pressure values.
- Features a sensor with a high-definition LCD display
(640x480).
- Allows data storage on an SD card with compression.
- Equipped with a USD interface.
- Housed in an impact-resistant case with an IP 67 rating.
- Available in an explosion-safe version.
Product Feature
Specification:
- Pipe Size (DN, mm): 20 ÷ 5,000
- Flow Velocity Range (m/s): 0.1 ÷ 20
- Accuracy (%): From 1.5
- Fluid Temperature Range (°C): -30 ÷ 150
- Ambient Temperature for Transmitter (°C): -10 ÷ 50
- Transmitter/Transducers Protection: IP67
- Number of Stored Sets of Site Parameters: 200
- Measurement and Error Data Logging Capacity, Number of
Records: 100,000
- Storage Rate (s): 1 ÷ 300
Power Supply:
- Battery (V): 3.6 (10 ÷ 30)
- External Power Supply (VDC): 220VAC 50Hz
- Via ~220VAC/12VDC Charger
Battery Uninterrupted Operation (hrs): Up to 24
- Transmitter Weight (kg): Under 3
- Transmitter Dimensions (mm): 285 × 250 × 125
Outputs:
- LCD
- Pulse Output
- RS-232 Interface
- USB
Product Features:
- OIML/MID 001/2014/32/EC certified.
- Digital data processing for quick measurements and high
interference protection.
- Automatic adjustment for ease of use.
Range:
- The Portable Ultrasonic Digital Flow Meter covers pipe
sizes from 10 mm to 5,000 mm.
Product Appication
Product Applications:
- Pure Water
- Waste Water
- Fuel
- Oil
- Acid & Chemical
- Heat/SIU
- Hygienic Liquid
This Portable Ultrasonic Digital Flow Meter is a versatile,
certified, and highly adaptable solution suitable for a wide range of
applications. Its digital data processing and automatic adjustment make it a
user-friendly choice for portable flow measurements.
