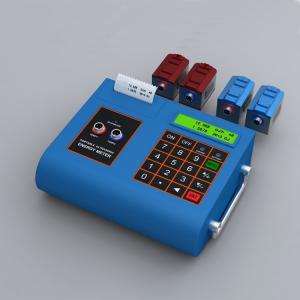

Portable Ultrasonic Flow Meter
The BROTEK MAKE SIM PP Portable Ultrasonic Flow Meter is a highly versatile, battery-operated, non-contact flow measurement device with the added convenience of an in-built printer and SD card facility. It is designed for non-invasive measurement of liquids in closed-pipe applications and is an ideal tool for flow surveys. The built-in SD card and printer offer the capability to print preset measuring results in real-time or at regular intervals. This device also allows for temperature and heat measurement when connected to a clamp-on temperature transducer.
Product Feature
Key Features:
- Ideal for non-contact
measurement of liquids in closed pipes.
- Suitable for flow surveys and
various closed-pipe applications.
- Built-in SD card and printer for
convenient and immediate result documentation.
- Capability to measure
temperature and heat using a clamp-on temperature transducer.
- Widely used in various
industries, including water supply, heat supply, chemical, machinery, and
energy resources.
Specifications:
- Principle: Transit-time sonic
flow meter.
- Accuracy: 1%.
- Display: Features an LCD
backlight display for easy reading.
- Output: Supports various output
options including RS-232, pulse, 4-20mA, and relay.
- Input: Features three-way 4-20mA
inputs for pressure, temperature, and level.
- Data Logger: Equipped with an
external SD card (2GB) for data storage.
- Flow Rate: Capable of measuring
flow rates from 0 to +/- 10 m/s.
- Power Supply: Utilizes eight AAA
Ni-MH batteries (1.2V) for up to 20 hours of continuous operation. It can also
be charged with a 90V-260V AC charger.
- Transducer: Features IP-67
protection for durability and reliable performance.
- Pipe Material Compatibility: The
flow meter is compatible with various pipe materials, including steel,
stainless steel, cast iron, copper, cement pipes, PVC, aluminum, and glass
steel products. It also allows for liners to be used.
Range:
The SIM PP Portable Ultrasonic
Flow Meter can be equipped with different clamp-on transducers, allowing it to
measure flow rates in pipes of varying sizes. The available ranges are as
follows:
1) Line size wise:
- DN 15 — DN 100
- DN 50 — DN 700
- DN 300 — DN 6000
Product Features:
- This portable ultrasonic flow
meter comes with a thermal printer and offers multiple output options including
analog, digital, and relay.
- It supports a wide range of
measurements and is compatible with a variety of clamp-on transducers.
- With up to 20 hours of battery
backup, it's well-suited for extended fieldwork.
Product Appication
In summary, the SIM PP Portable
Ultrasonic Flow Meter is a powerful and portable solution for non-invasive flow
measurements. Its in-built data logging and printing capabilities make it suitable
for various applications in industries like water supply, heat supply,
chemical, machinery, and energy resources. It can effectively measure flow in
pipes ranging from 15 mm to 6000 mm in size.
