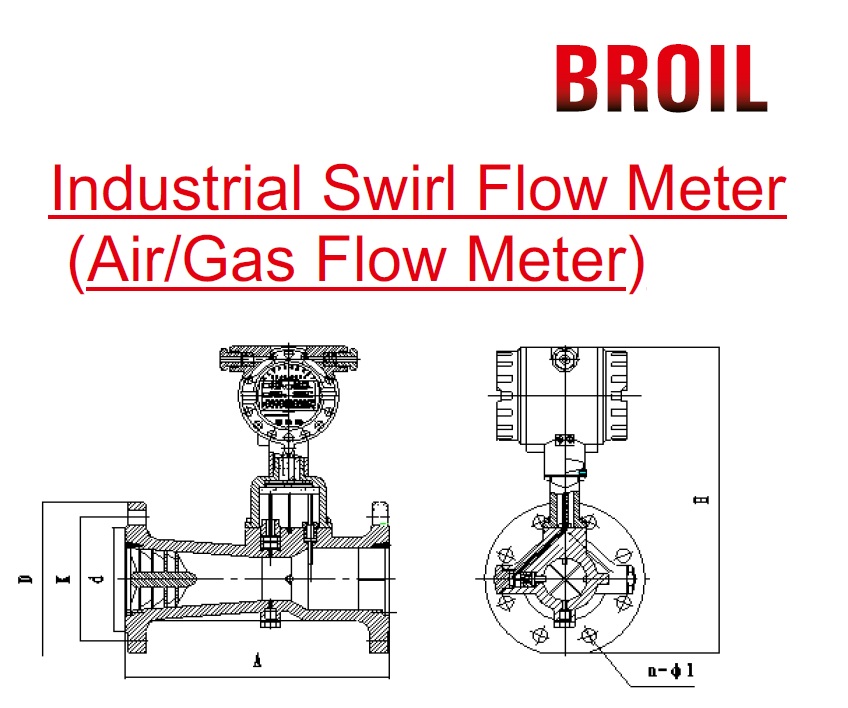

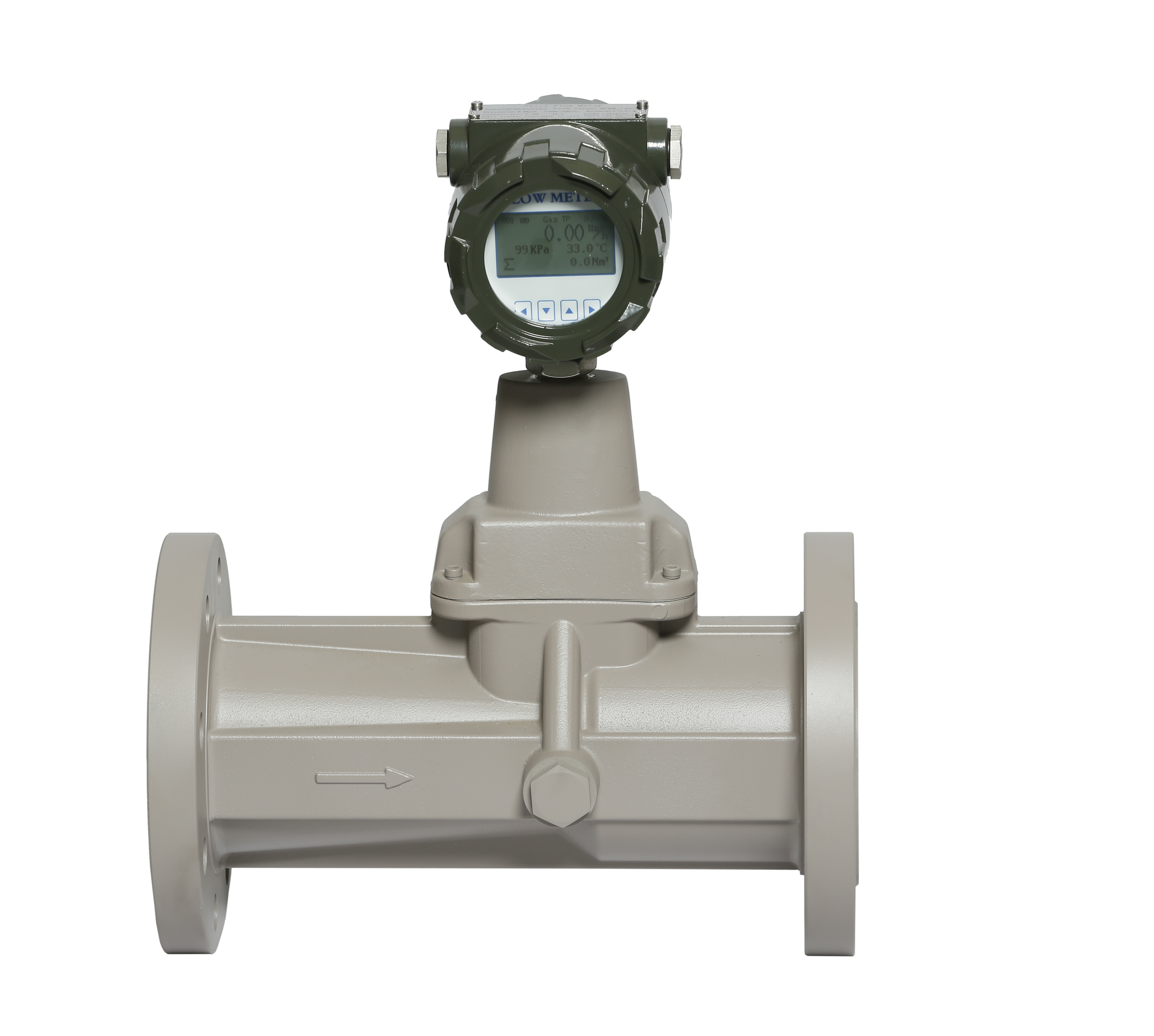

SWIRL VORTEX FLOW METER
-- BROILTECH Swirl flow meter is the new type of flow meter with up to date technique. It integrates flow,
temperature and pressure to do volume compensation
Main Characteristics : No remove parts, Anti-corrosion, stable performance, long working life, not need
special protection measurement after long working hours.Adopted 16 Bit computer chips ,highly integrated, small volume, good performance. The intelligent flow meter integrates sensor ,micro-processor,pressure and temperature sensor into one part , built-in group to compact the structure , directly measure flow volume,
pressure ,temperature and able to carry out volume compensation. Adopted double testing technique to improve the testing signal and to prevent the vibration of pipeline. l Adopted advanced anti-vibration technique
To restrain the vibration and disturbing signal from pressure fluctuation. Digital counter displays volume flow,
volume flow in standard state, totalized flow ,medium pressure and temperature ,etc
Product Feature
BEST TO MEASURE AIR AND VARIOUS GAS AND LOW FLOW APPLICATION
No moving parts, wear resistance, structure is simple and fastness
The allowed working temperature is wide from -20? to +80?
Wide range, High accuracy
The body Material could be aluminum or Stainless steel as per different
pressure requirement
Pulse signal output, two-wire system 4-20mA current output, RS-485 output
Battery operated meter :
Power voltage: 3.3 V lithium batteries can be used more than 2 years in a row.
Display with 4 to 20 mA Output
Power voltage: 24 V DC
Output signal: 4 TO 20 mA
Optional output on demand : RS-485/ ALARM/3 wire pulse output
Product Appication
Application : BEST TO MEASURE AIR AND VARIOUS GAS AND LOW FLOW APPLICATION
*Various Gases Measurement
*Petroleum
*Chemical Engineering
*Industrial gases
*Compressor air measurement
Gas : air, oxygen, nitrogen, coal gas, natural gas, chemical gas
