Turbine Flow Meter - LIQUID

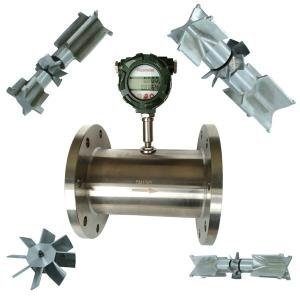

BROIL Turbine Flow Meter for Liquid

 BROIL is a producer and developer of turbine flow meters designed for a wide range of applications, available in line sizes from a minimum of 4 mm to a maximum of 400 mm. Turbine flow meters are suitable for measuring the flow of both liquids and gases.

 Turbine Flow Meter With Below OUTPUT VARIANT

1. Inline Battery Operated Display (EX or IP-65):

   - Suitable for hazardous environments (EX) or IP-65 rated for dust and water resistance.

2. 4 to 20 mA Output 2-Wire Display (EX):

   - Designed for hazardous environments (EX).

3. 4 to 20 mA + RS-485 Output Display (EX):

   - Combines the 4-20 mA output with RS-485 communication for data transfer in hazardous environments (EX).

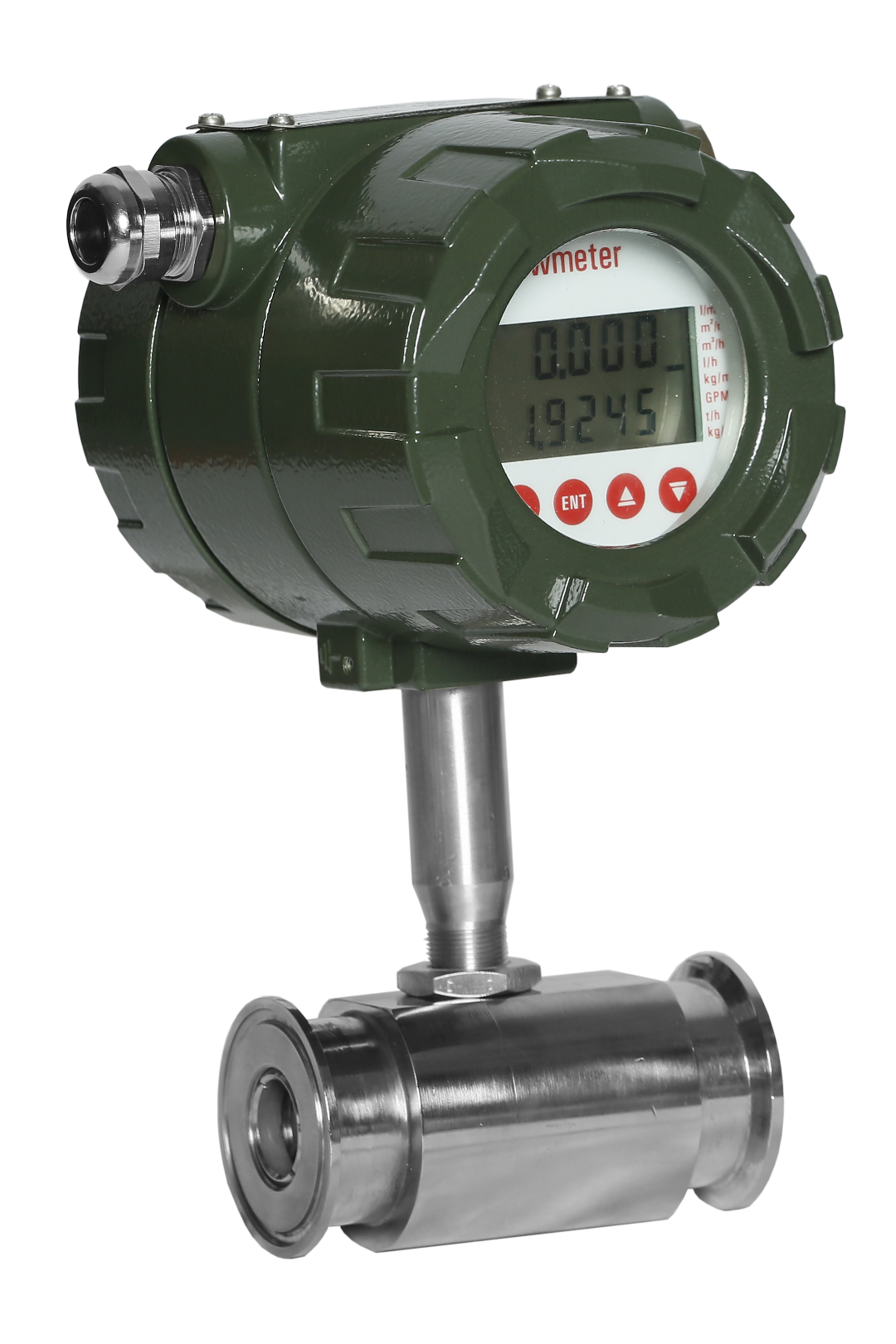

4. 4 to 20mA + HART Output Display (EX):

   - Features 4-20mA output with HART communication, designed for hazardous environments (EX).

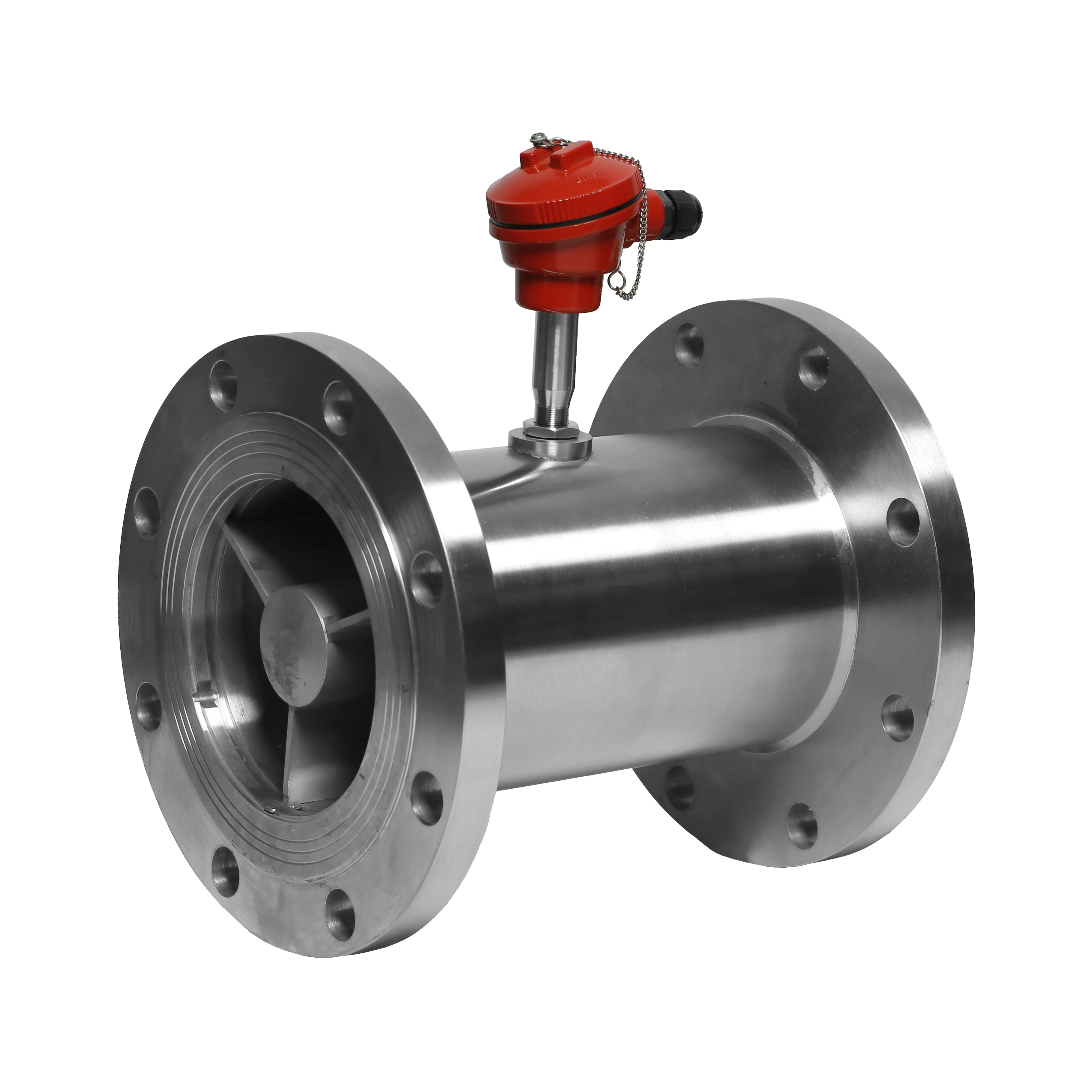

5. WITH PULSE OUTPUT SENSOR ONLY

   -  Without Display flame proof and Weather proof

Turbine Flow Meter General Technical Data:

- Material of Construction:

  - Enclosure: S.S-304/S.S-316

  - Rotor: S.S-304

  - Shaft: Hard Stainless Steel-316 with a carbon bush

- Accuracy: +/- 0.2% or 0.5% of Full-Scale Deflection (FSD)

- Repeatability: 0.1%

- Maximum Working Pressure: 60 bar/250 bar/400 bar

- Fluid & Ambient Temperature: -20 to 120°C

- Connection: Thread (M/F) or flange & Tri-clover Connection
