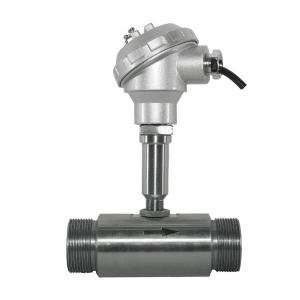

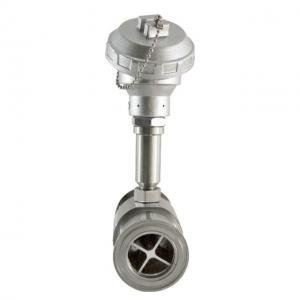

HELICAL FLOW METER
HELICAL Turbine Flow Sensor for Accurate Flow Measurement
Helical
Rotor flow sensor / meter General
Technical data:
Material of construction:
Enclosure : S.S-304/S.S-316
Rotor : S.S-304/Titanium/
Aluminum anodized
Shaft : Hard Stainless
Steel-316 with carbon Bearing
Accuracy : +/- 0.5 or 1%
FSD
Repeatability : 0.1%
Maximum working pressure: 6 MPa
Fluid &Ambient temperature: -20 to 120
Deg. C
Connection: Thread (M/F) or flange
Product Feature
1) Pulse output Helical flow sensor :
Power voltage: 12 V DC Output signal: NPN open connector
Output: high electric level : High than 8 VDC( input voltage 12 VDC)
low electric level : lower than 0.8 VDC( input voltage 12 VDC)
2) Battery operated helical flow meter :
Power voltage: 3.3 V10AH lithium batteries
can be used more than 5 years in a row.
display mode: Double row Liquid Crystal Display (LCD), as follows:
L
XXX. X four instantaneous flow (m3 /
h) or L/h
XX. XXXXXX eight cumulative flow (m3) or L
3) Helical rotor flow meter with 4 to 20 mA Output :
Power voltage: 24 V DC
Output signal: 4 TO 20 mA
Product Appication
Product Applications:
- Pure Water, CHEMICAL
- Fuel
- Oil
- Heat/BTU (British Thermal Units)
- Hygienic Liquid
