Ultrasonic Clamp On Flow Meter

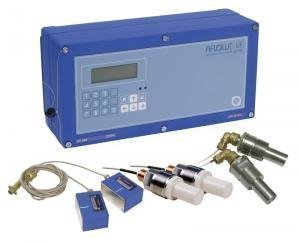

Ultrasonic Digital Clamp-on Flow Meter
The Ultrasonic Digital Clamp-on Flow Meter is a highly
advanced and versatile flow measurement solution. It offers numerous advantages
and is certified under OIML, MID 001, and 2014/32/EC standards. This flow meter
is designed for a wide range of applications and provides accurate and reliable
measurements.
Advantages:
- OIML/MID 001/2014/32/EC certified.
- Utilizes digital signal processing for high noise
immunity.
- Covers a wide DN (Nominal Diameter) range from 10 mm up to
5000 mm.
- Can operate stably even with a weak signal on aged piping.
- Reliable metering even in the presence of fluid parameter
alterations.
- Easy commissioning.
- Offers bidirectional flow measurement.
- Features both clamp-on and wetted transducers.
- No pressure loss in the pipeline.
- Includes batching mode for measuring doses.
- Supports multi-beam measuring.
- One electronic unit can handle up to 4 pipes.
- Equipped with waterproof transducers.
- ISO 9001:2008 certified.
Product Feature
Measured Media:
- Hot and cold process and potable water.
- Waste water.
- Acids.
- Alkalis.
- Liquid foods.
Specification:
- Nominal Diameter of the Pipeline (DN):
- Wetted PEA: 10 ÷
5000
- Clamp-on PEA: 50 ÷
5000
- Accuracy (%), with Flowrate Range from 1:100:
- Single-beam
sounding: ± 2
- Two-beam sounding:
± 1
- Four-beam
sounding: ± 0.5
- Flow Velocity Range (m/s): 0.1 ÷ 20
- Fluid Temperature Range (°C):
- Wetted PEA: -30 ÷
160
- Clamp-on PEA: -30
÷ 150
- Ambient Temperature for Transmitter (°C): 0 ÷ 50
- Maximum Pipeline Pressure (MPa/bar): 2.5/25
Transmitter/Transducers Protection: IP54/IP68
Measurement Data Logging, Number of Records:
- Hourly log: 1440 records
- Daily log: 60 records
- Monthly log: 48 records
- Programmable: 14400 records
- Batching: 512 records
Power Supply: VDC 24
Power Consumption (VA): Under 12
Transmitter Weight (kg): Under 3
Transmitter Dimensions (mm): 250 ÷ 132 ÷ 90
Outputs:
- LCD
- Pulse or logic digital output (up to 8 additional digital
outputs available on request)
- RS-232/RS-485 serial interface (ModBus)
- 0-5, 0-20, or 4-20 mA analog output (available on request)
- Ethernet (available on request)
Product Features:
- Wide range of nominal diameters covered.
- Reliable and accurate measurements.
- Versatile and adaptable to different applications.
- High-level protection and data logging.
Range:
- The Ultrasonic Digital Clamp-on Flow Meter is suitable for
pipelines ranging from 10 mm to 5000 mm.
Product Appication
Product Applications:
- Pure Water
- Waste Water
- Fuel
- Acid & Chemical
- Heat/SIU
- Hygienic Liquid
This Ultrasonic Digital Clamp-on Flow Meter is a robust and
certified solution for a wide range of flow measurement applications. Its
versatility, accuracy, and reliability make it a suitable choice for various
industries and fluid types.
