Ultrasonic Level Transmitter With HART Output

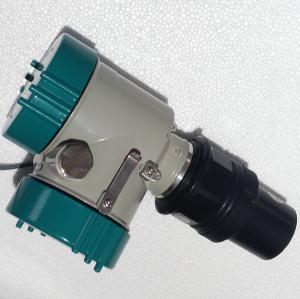

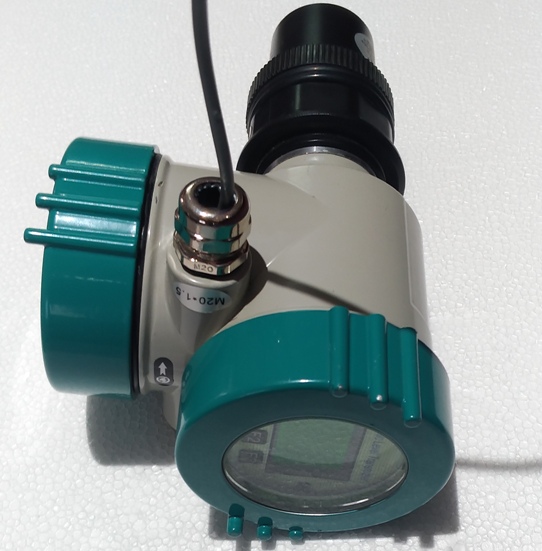

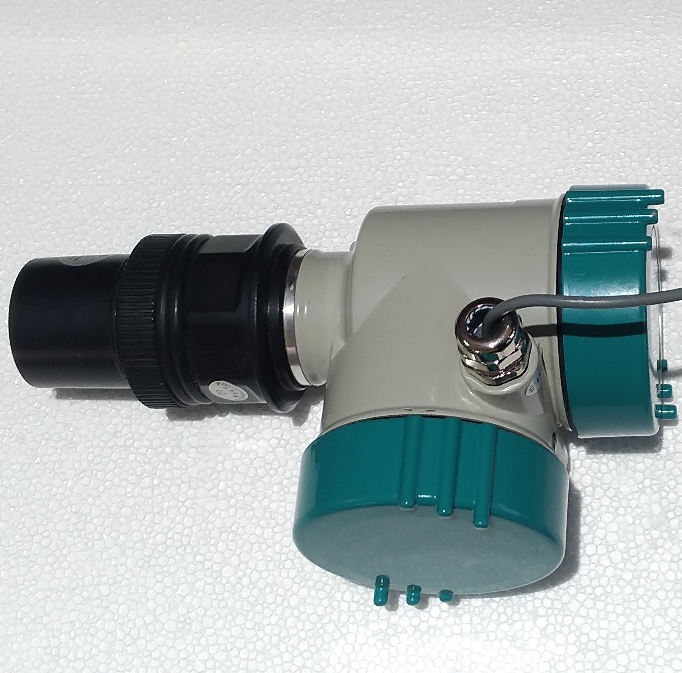

The BROTEK MAKE Ultrasonic Level Meter with HART 4 to 20 mA output
is an advanced and reliable non-contact level measurement instrument designed
for measuring material and liquid levels. It offers various features and
technical specifications to meet a wide range of level measurement requirements
without coming into contact with the measured medium.
Product Feature
Here are the technical details and key features of the
Ultrasonic Level Transmitter with HART output:
Technical Details:
- Function: Integrated
- Range: Available in various measurement ranges: 5 meters,
10 meters, 15 meters, and 20 meters
- Measurement Accuracy: Ranges from 0.5% to 1.0%
- Resolution: 3mm or 0.1% (whichever is greater)
- Display: Features an English LCD display with a graphical
representation of the level, temperature of the medium, output current,
distance of the level, and % of level. It also provides self-check and
indicates alarms for signal strength, hardware failures, echo loss, and
excessive noise.
- Analog Output: HART, 2-wire 4-20mA output with a 250? load
- Relay Output: None
- Power Supply: Standard 24VDC
- Ambient Temperature: Display instrument operates in the
range of -20°C to +60°C, while the probe operates in the range of -20°C to
+80°C.
- Communication: None
- Degree of Protection: The display instrument is rated
IP65, and the probe is rated IP68.
Product Features:
- Self-compensation and alarm against radio frequency and
noise, ensuring reliable measurements.
- The ultrasonic probe is nano-coated and resistant to
condensation.
- Inbuilt temperature sensor for measuring and compensating
for temperature changes.
- Three-cavity explosion-proof enclosure for enhanced
safety.
- HART output for communication and control.
Certifications and Protection:
- Certified by EC, SIL, and WEATHERPROOF standards.
- Explosion-proof rating: EXD IIC T6 Gb, Certificate no:
CCRI 17, 1007.
- Safety Certificate: Class SIL-3, Certificate No: 2j/1019.
- Protection: IP66-rated for protection against dust and
water.
Product Appication
The BROTEK MAKE Ultrasonic Level Meter with HART output is a
versatile and reliable solution for level measurement, especially in
challenging industrial environments. For more detailed information or to
arrange for the product, you can contact the manufacturer or distributor.
