Key Specifications:

- Power Supply Voltage: 12~30VDC / 110~220VAC (only for relay output type)

- Output: Options include Relay DPDT 8A 250VAC, PNP output (50mA, 24V), and Frequency output (0~2000Hz, 24V).

- Working Temperature of Medium: Short fork body: -30°C to 150°C, Long fork body: -30°C to 250°C.

- Density Range: Suitable for liquids with a density of ?600 kg/m³ and solid powders with a density of ?100 kg/m³.

- Liquid Viscosity: Suitable for liquids with a viscosity range of 0.2 to 10,000cp.

- Switching Delay: Adjustable from 0 to 30 seconds.

- Switch Mode: Offers upper or lower limit alarm, user-set.

- Hysteresis (Water): ±1mm.

- Maximum Operating Pressure: ?1Mpa.

- Connection Method: Thread (3/4" NPT, G1/2), Flange (user-specified), Sanitary fittings (2" Tri-Clamp connector, 1" BSPP (G) O-ring seal material).

- Enclosure Material: Die-cast aluminum alloy (IP66) for general use, and EX d II CT6 for explosion-proof environments.

- Fork Body Material: Available in 316 stainless steel or 316 stainless steel with Teflon surface.

- Fork Body Vibration Frequency: Short fork body: 1400 ± 50Hz, Long fork body: 330 ± 50Hz.

- Environmental Vibration Level: Acceleration is not greater than 1g.

Product Features:

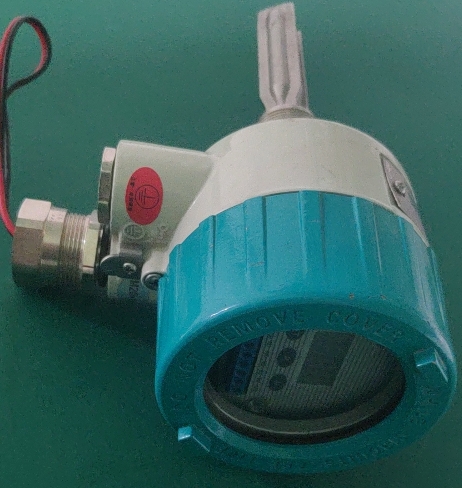

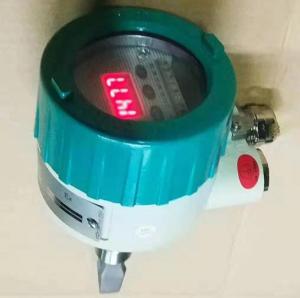

- The SI Smart Vibrating Tuning Fork Level Switch offers real-time display of fork frequency values, making it easy to detect early faults such as fork wear.

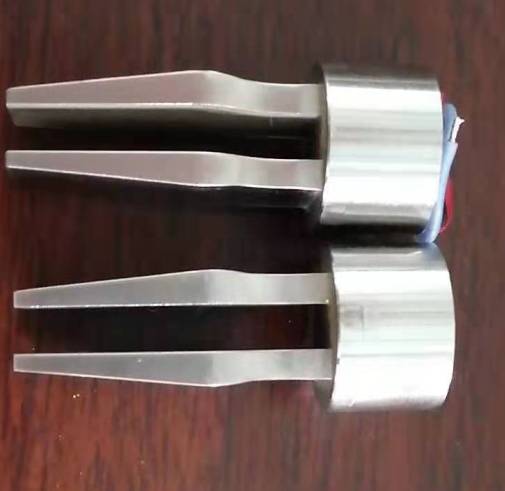

- It supports both long and short tuning fork shapes, providing versatility for various applications.

- The level switch is not affected by flow, foam, turbulence, floating foam, vibration, solid content, hanging materials, liquid characteristics, or media changes.

- No on-site calibration is required, simplifying installation.

- It features a self-diagnostic function that checks and displays diagnostic information such as frequency, temperature, voltage, and current.

- Easy to set: Sensitivity and alarm delay can be adjusted with the press of a button.

- The "quick dripping" tuning fork shape design of the short fork body allows for faster response, making it suitable for viscous liquids.

Range:

The smart tuning fork switch comes with a variety of durable stainless steel tuning fork options for detecting the level in storage tanks or pipelines. It is suitable for a wide range of applications involving liquids, powders, and granular solids. It can be installed in pipelines or storage tanks using threads and flanges, and it can be used in the food industry through sanitary connections.

In summary, the SI Smart Vibrating Tuning Fork Level Switch is a highly adaptable and intelligent solution for various level measurement applications. Its real-time display, self-diagnostic capabilities, and versatility in fork shapes make it a valuable addition to industrial processes.
